  Products  Bulldozer

Large Bulldozer

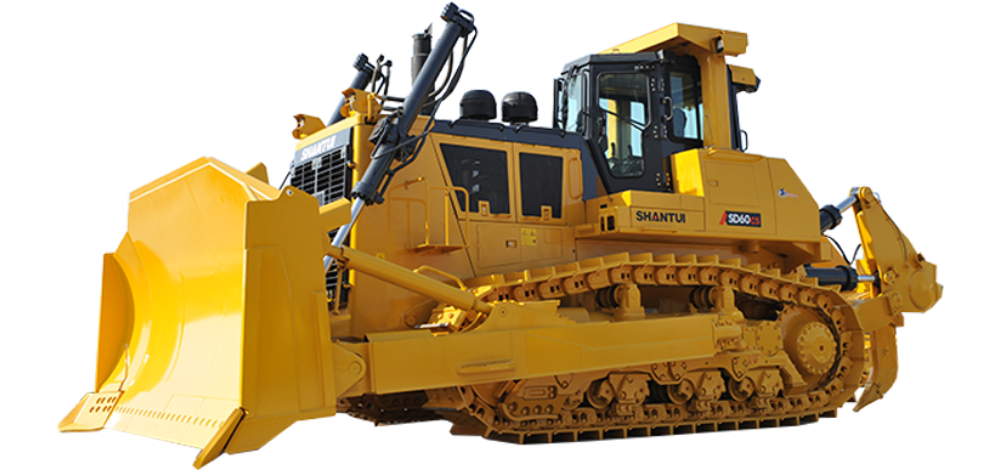

SD60-C5

Overall weight(kg)

70630
Engine brand

Cummins
Rated power/rated speed(kW/rpm)

450/1800

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Adaptability to diverse working conditions

Featuring a U-shaped blade and a coal scoop constructed from high-strength materials, along with a robust single-tooth ripper and reinforced heavy-duty tracks, the machine is well-suited for operations in extremely harsh mining conditions.

Ease of maintenance and operation comfort

Centralized layout of filters facilitates easy maintenance. Spacious and well-sealed cab offers excellent visibility. Intelligent diagnostic system monitors various parameters in real time.

Configuration selling point

The dedicated engine delivers robust power and exceptional efficiency. The electronic control transmission allows for preset gear selection. The Shantui K-type suspension four wheels and one track exhibit excellent ground adaptability and remarkable durability.

Parameter

View online

Parameter	SD60-C5
Overall weight(kg)	70630
Engine brand	Cummins
Rated power/rated speed(kW/rpm)	450/1800
Machine external dimensions(mm)	1039046904370
Track center distance(mm)	2500
Track shoe width(mm)	610 (Optional 710/810)
Ground contact length(mm)	3840
Fuel tank capacity(L)	1150
Blade type	Semi-U blade
Blade capacity(m³)	18.9
Emissions (Indicated as per international standards)	Eu stageⅢA
