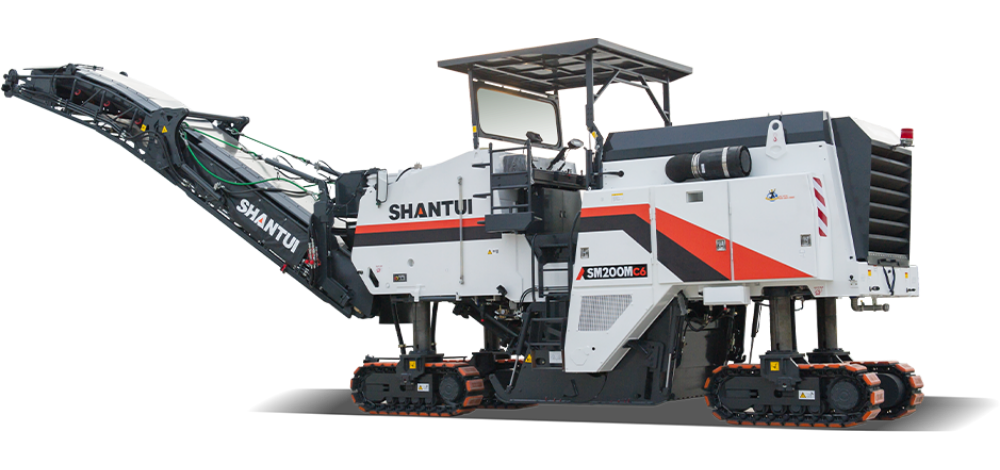

SM200M-C6
Cold Milling Machine
SM200M-C6
  • Engine power(kW/rpm)
    485/2100
  • Operating weight(kg)
    33000
  • Maximum milling width(mm)
    2000
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Adaptability to diverse working conditions

The machine is well-suited for large-scale removal and stripping operations of surface defects on expressways, asphalt pavements of varying grades, airport runways, and port terminals, as well as for scarifying cement pavements.

Ease of maintenance and operation comfort

The machine is equipped with a multi-function handle to facilitate one-button operation, and it stores several sets of milling depth settings for easier operation. Parameters such as steering, zero cutting depth position, and column lifting speed can be calibrated online, making construction easier. The water system blockage alarm helps prolong the life of milling tools. The reasonable layout of maintenance points facilitates convenient maintenance.

Configuration selling point

The machine is equipped with a dedicated high-horsepower engine, combined with a working weight of 33T, ensuring exceptional efficiency and excellent adaptability to diverse working conditions. The conveyor belt’s maximum speed can be independently calibrated, providing strong conveying capacity and a wide range of material reception due to the large swinging angle of the conveyor belt. It features a temperature-controlled fan to ensure exceptional energy efficiency.

Parameter
Parameter SM200M-C6
Engine power(kW/rpm) 485/2100
Operating weight(kg) 33000
Maximum milling width(mm) 2000
External dimensions 11965*2685*3180
Engine model Cuins QSX15
Maximum milling depth(mm) 330
Number of milling tools 148
Milling diameter including tools(mm) 1020
Conveyor belt width(mm) 850
Operating speed(m/min) 0-85
Travel speed(km/h) 0-5.0
Emissions (Indicated as per China standards) Eu stage IIIA
