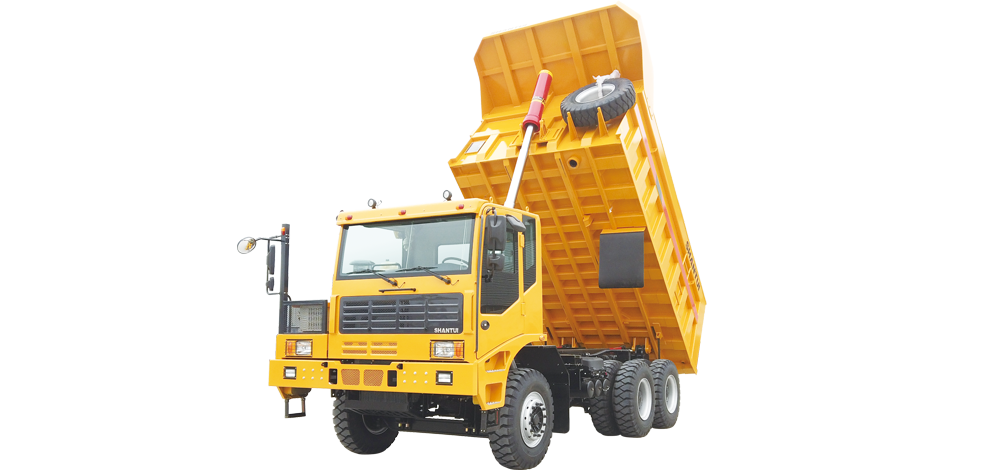

SK90-C6
Mining Truck
SK90-C6
  • Machine weight(kg)
    90000
  • Load capacity(kg)
    60000
  • Engine power speed(kW/rpm)
    316/2100338/2100
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Adaptability to diverse working conditions
The mining-specific transmission, Hande mining-specific axles known for their high strength and comfort, and the sturdy single-beam frame contribute to the extensive application of the machine in sand, gravel, aggregate, and cement enterprises, port transportation, and industrial logistics scenarios.
Ease of maintenance and operation comfort
The wide-body cab, characterized by its high strength and comfort, offers a spacious interior and excellent visibility. The reasonable layout of various filter elements facilitates easy maintenance;
Configuration selling point
The group’s WP12 golden powertrain assembly, coupled with the industry’s widest single-beam flexible frame and a low center of gravity, contributes to a stable and reliable chassis. The high-reliability air circuit plug-in components ensure optimal pressure retention, while the oversized air reservoir contributes to improved braking safety.
Parameter
Parameter SK90-C6
Machine weight(kg) 90000
Load capacity(kg) 60000
Engine power speed(kW/rpm) 316/2100338/2100
External dimensions(mm) 8950×3550×4150
Axle load(t) 20/35/35
Transmission 7DS200/8DS240A
Fuel tank capacity(L) 600
Tire 14.00-25
Drive axle 35T,planetary two-stage central and wheel-side reducer with an inter-axle differential lock
Emissions (Indicated as per international standards) Eu stage IIIA
